How to order rims
As every hub requires the holes in the rim to be set at a unique angle,
it is vital that you supply the following information when ordering new rims.
If you require a complete wheel build, it will also be necessary to supply your existing hub.
| 1. Your bike's make and model

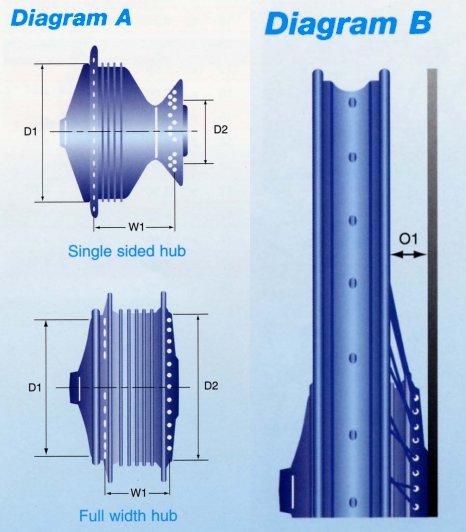

2. The name and type of rim required, e.g. Morad Alloy TC 3. The diameter and width of the rim, e.g. 18" x 1.60" (WM1) 4. The number of spoke holes e.g. 40. 5. Where possible, please state the type of hub, i.e. Full Width, conical, disc brake, QD or cotton reel single-sided. 6. Hub dimensions, e.g. D1, D2 and W1 in diagram A. 7. Hub offset measurement, e.g. O1 see diagram B. Please note: |
|
 |
To find the Hub Offset, place a straight edge across one side of the hub e.g. disc side and measure the distance to the edge of the rim. |
